Allens Performance Ltd.

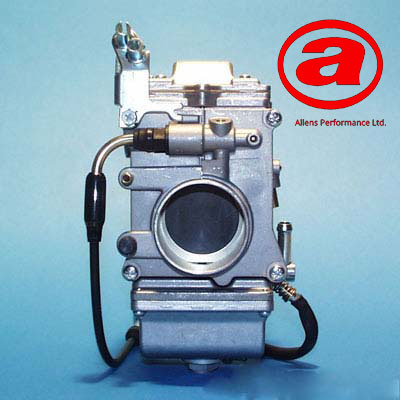

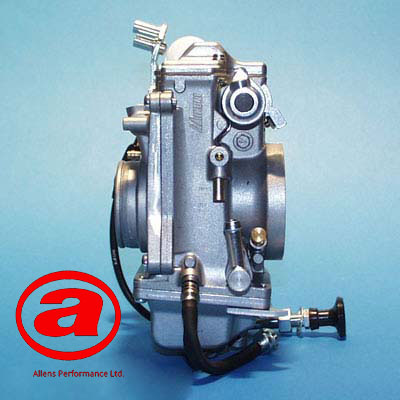

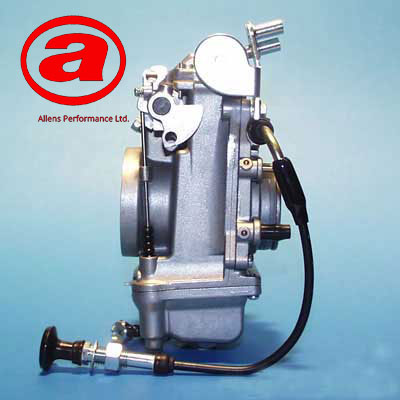

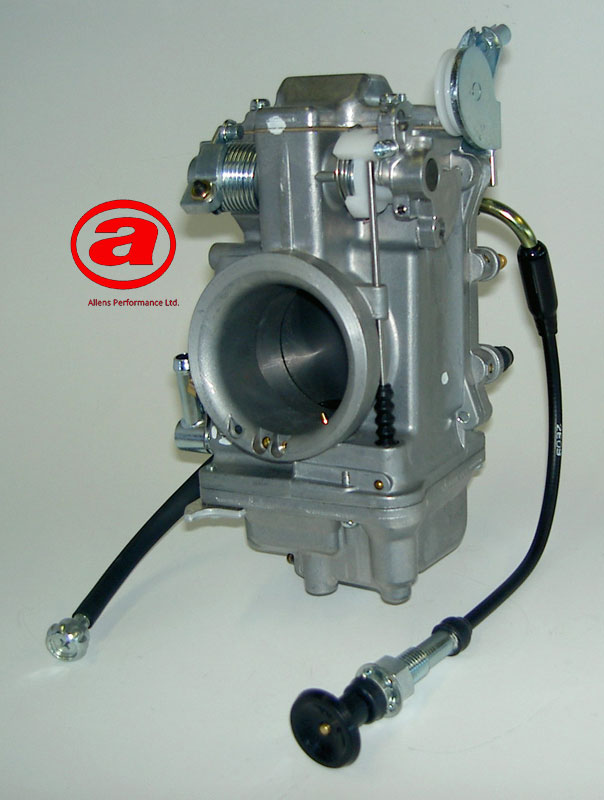

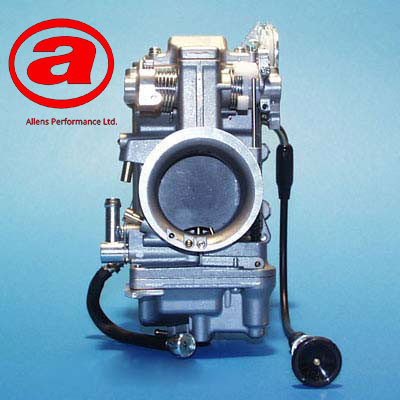

TM45-2 Data Set

Position Part Number Description
1 C5=410-B
C5=410-B
Screw: Carb Top
2 CW2=0414
CW2=0414-B
Screw: Carb Top
3 776-39005 Carburettor Top (TM42, TM45)
3a 111-776-001 Carburettor Top (TM48)
4 TM42/04 Gasket: Carb Top
5 TM32/90 E-clip: Jet Needle
6 826-03002 Washer: Jet Needle
7 J8-##### Jet Needle
8 TM42/03 Throttle Valve Link
8a TM42/08-1A Throttle Valve Link
9 B40I/56 E-clip: Throttle Valve Link
10 B40I/10 Shim: Throttle Valve Link
11 834-23041 Pivot: Throttle Valve Link
12 TM42/08 Throttle Valve
13 739-13002 Screw: Jet Needle Retainer
14 TM42/16 Retainer: Jet Needle
15 TM42/13 Seal Ring (TM42, TM45)
15a TM42/08-1A Seal Ring (TM48)
16 TM42/10 Seal: Throttle Plate
17 925-98006 Jockey Wheel: Throttle Cable
18 53974 E-clip: Jockey Wheel
19 TM42/51 Bracket: Throttle Cable
20 B3=0520-B Screw: Bracket
21 VM28/204 Spacer: Bracket
22 TM42/38 Locking plate
23 C2=0514-B Screw: Carb Body
24 640-12001 Retainer: Cold Start
25 VM14/241 Spring: Cold Start
26 N189192 Plunger: Cold Start
27 TM42/06 Carburettor Body: TM42 Front
27a TM45/06 Carburettor Body: TM45 Front
27b TM48/06 Carburettor Body: TM48 Front
28 616-94029 Seal: Carb Body
29 925-19011 Spring Seating Ring
30 TM42/43 Cam: Pump Rod
31 N138019 Roll Pin: Throttle Bellcrank
32 TM42/48 Throttle Bellcrank
33 M12F/46-BB Spring: Pump Stop
34 MC-0316-B Stop Screw: Pump
35 TM42/47 Spring: Pump
36 N/A Carburettor Body
37 B36/95 Shim: Throttle Valve Link
38 TM42/36 Screw: Adjust Pump
39 B30/205 O-ring: Pump Adjuster
40 TM40/89 Lifting Arm Screw
40a TM42/17 Locking plate
41 BN38/43 Roll Pin:
42 TM42/46 Crank: Throttle Return
43 B30/1069 Spring: Throttle Stop
44 N3=04 Nut: Throttle Stop
45 TM42/19 Spring: Throttle Valve Return
46 700-15012 Throttle Shaft
47 TM42/15 Retaining Plate: Fuel Pipe
48 C2=0410-B Screw: Retainer for Fuel Pipe
49 604-26014 Pilot Air Screw
50 N133206 Spring: Pilot Air Screw
51 VM12/205 Washer: Pilot Air Screw
52 N1333037 O-ring: Pilot Air Screw
53 TM40/27 Fuel Pipe
54 KV/10 O-ring: Fuel Pipe
55 B30/398 Shim: Tickover Screw
56 VM22/138 Washer: Tickover Screw
57 730-09018 Spring: Tickover Screw
58 925-15001 Spring Seat: Tickover Screw
59 TM42/32 Tickover Screw (Long)
59a 990-605-065 Tickover Screw (Short)
60 BS30/97-0.0 Air Jet
61 784-430000-size Needle Jet
62 TM42/11-size Pump Nozzle
63 N124063 O-ring: Pump Nozzle
64 VM28/486-size Pilot Jet
65 TM42/12 Spacer: Main Jet (TM42, TM45)
65a TM42/12-1A Spacer: Main Jet (TM48)
66 N100604-size Main Jet
67 616-33003 O-ring: Float Valve Seat
68 VM13/216 Screw: Retaining Float Valve Seat
69
69A
786-27001-size
786-27001-1A-Size
Float Valve Assy (TM42-6,TM45-2)
Float Valve Assy (TM48-2)
70 859-32027 Floats
71 NV26/22 Pivot: Floats
72 C2=0410 Screw: Retaining Float Pivot Pin
73 616-94028 Seal: Float Bowl
74 TM42/05 Float Bowl
75 N122028 Hose: Overflow
76 VM28/254 O-ring: Drain Screw
77 TM32/41 Drain Screw
78 C2=0412-B Screw: Float Bowl
79 TM36/44-1A Pump Rod
80 TM36/64 Dust Cover: Pump Rod
81 TM36/60 Piston: Pump
82 VM14SC13/89 Spring: Pump Piston
83 N198063 Cap: Vacuum Fitting
84 TM29/31 Cold Start Assy (Knob Type)
85 990-662-002 Cold Start Assy (Cable Type)
86 VM12/43 Dust Cover: Cold Start



TM45-1 (Old Version)
Position Part Number Description
16 TM40/89 Screw: Bracket
17 TM42/38 Locking plate
18 TM42/34a Bracket: Throttle Cables
25 BN38/43 Roll Pin: Pump Crank
26 MC-0316-B Screw: Pump Adjustment
27 M12F/46-BB Spring: Pump Adjustment
28 TM42/28 Pump Crank
29 TM42/21 Pump Cam
30 TM42/37 Spring: Pump Cam
31 E204040 Spring Seat: Pump Cam
37 B30/1069 Screw: Throttle Stop
38 TM42/20 Bellcrank: Throttle
39 N138019 Roll pin: Throttle Bellcrank
40 N3=04 Lock Nut: Stop Screw
41 TM42/19 Spring: Throttle Return
42 700-15011 Throttle Shaft
MOUNT TYPE Spigot MAIN JET N100604-Size 175
TICKOVER POSITION Left PILOT JET VM28/486-Size 25
COLD START POSITION Right NEEDLE JET 784-430000-Size (723) Y-6
COLD START TYPE Cable JET NEEDLE 8CFY2-97 Clip groove #3
AIR SCREW POSITION Left STARTER JET Fixed
FLANGE PITCH (MM) PILOT AIR JET
CLAMP DIA (MM) PILOT AIR SCREW VM20/584-Size 2 Turns out
FRONT SPIGOT DIAMETER (MM) 49 MAIN AIR JET BS30/97-Size 0
REAR SPIGOT DIAMETER (MM) 65 POWER JET
LENGTH (MM) 90 THROTTLE VALVE
HEIGHT OVER BORE CENTRELINE (MM) 108 FLOAT VALVE 786-27001-Size 4.2
HEIGHT UNDER BORE CENTRELINE (MM) 82 PUMP NOZZLE TM42/11-Size 0.70
FUEL INLET POSITION Left
FLOAT HEIGHT (MM) 18
FUEL SPIGOT (MM) 8
