Allens Performance Ltd.

TM40-6 Data Set

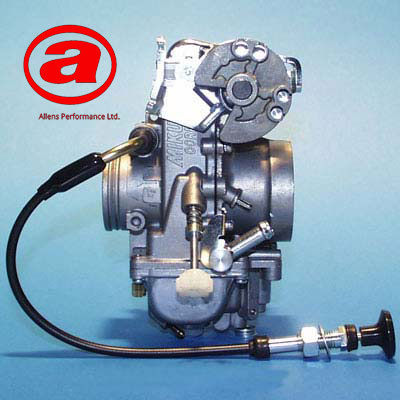

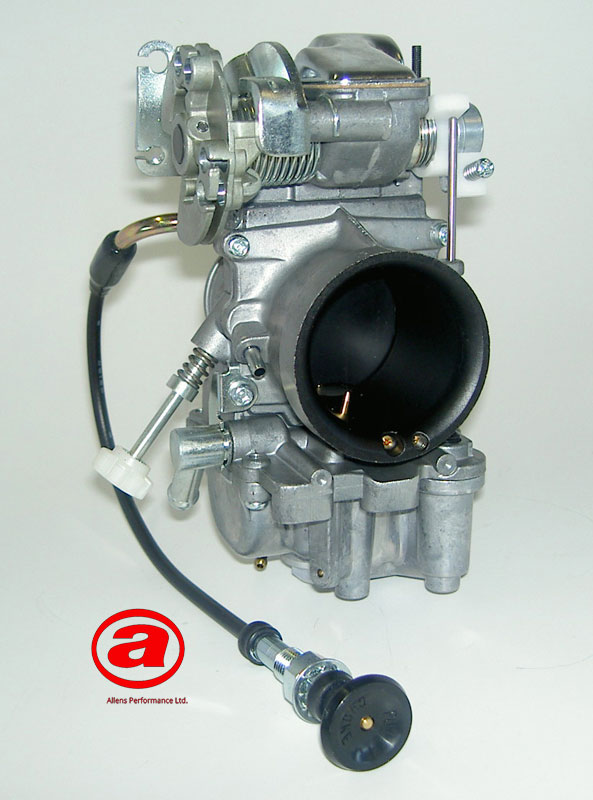

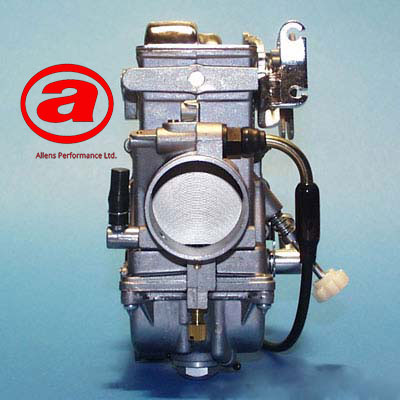

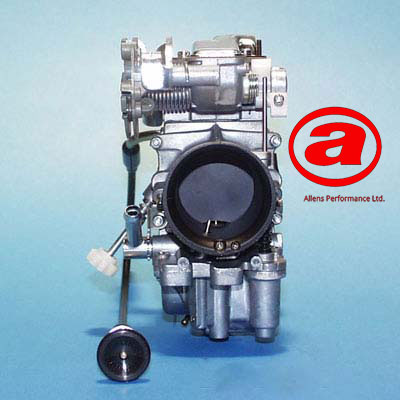

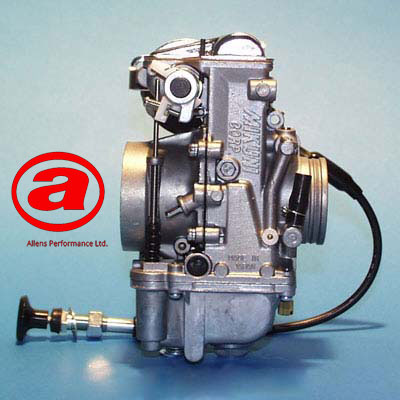

Position Part Number Description
1 N/A Carburettor Body: Front
2 VM18/341 E-clip: Jet Needle( TM36-31)
2a TM32/90 E-Clip: Jet Needle (TM40-6)
3 VM26/315 Washer: Jet Needle( TM36-31)
3a 826-03002 Washer: Jet Needle (TM40-6)
4 739-13001 Screw
5 C5=0514 Screw: Throttle Valve Lifting Arm
6 TM36/39 Gasket: Carb Top
7 TM36/59 Carburettor Top
8 TM36/57 Lifting Arm: Throttle Valve
9 N/A Gasket: Carb Body
10 N/A Carburettor Body: Rear
11 C2=0310 Screw: Jet needle Retainer
12 TM36/12 Retainer: Jet Needle
13 N124063 O-Ring: Pump Nozzle
14 TM36/43-size Pump Nozzle
15 TM29/14 Seal: Pump Nozzle
16 M10/56 Washer: Throttle Valve Pivot
17 BSW28/70 E-clip: Throttle Valve Pivot
18 B40I/10 Washers: Throttle Valve Pivot
19 TM27/07A Wire Clip: Throttle Valve Lifting Link
20 TM29/65 Bush: Throttle Valve Lifting Link
21 TM27/04 Throttle Valve Lifting Link
22 TM36/54 (N/A) Lifting Plate: Throttle (Used on Plastic Slides)
23 J8-##### Jet Needle
24 TM36/137 Throttle Valve (TM36-31)
24a TM40/80 Throttle Valve (TM40-6)
25 N133037 O-Ring: Pilot Mixture Screw
26 VM12/33 Washer: Pilot Mixture Screw
27 N133206 Spring: Pilot Mixture Screw
28 616-94021 Seal: Float Bowl)
29 604-26003 Pilot Mixture Screw
30 TM40/12 Float Bowl
31 VM28/486-size Pilot Jet
32 784-13002-size Needle Jet
33 VM28/254 O-ring: Drain Screw
34 N100604-size Main Jet
35 TM32/41 Drain Screw (Float Bowl)
36 859-32011 Float Assy
37 VM30/160 Pivot: Float Arm
38 786-36011-size Float Vavle Assy
39 BS30/97-0.0 Air Jet: Main
40 C5=0512-B Screw: Throttle Cable Bracket
41 700-15004 Throttle Shaft
42 E100030 Washer: Thrust Washer for Lifting Arm
43 BS30/97-size Air Jet: Slow
44 N2=03-B Lock Nut: Lifting Arm
45 TM36/48 Screw: Adjusting
46 TM40/14 Throttle Cable Bracket
47 N138019 Roll Pin: Throttle Bellcrank
48 TM40/23 Bell Crank: Throttle Cables
49 B40I/61 Spring: Tickover Screw
50 TM40/91 Tickover Screw
51 TM36/46 Spring: Throttle Return (TM36-31)
51a TM40/25 Spring: Throttle Return (TM40-6)
52 CW2=0408 Screw: Carb Top
54 VM38/133 Screw: Carb Body
55 BN38/43 Roll Pin: Pump Rod Cam
56 TM36/18 Cam: Pump Rod
57 B30/205 O-Ring
58 TM40/33 Spring: Pump
59 TM36/17 Pump Rocker
60 M12F/46a Spring: Pump Rocker Stop
61 MC-0316 Pump Rocker Stop
62 N3=03-B Nut: Pump Rocker Stop
63 N148013 Cap: Vacuum Fitting
64 BVK28/128 Clip: Vacuum Fitting Cap
65 TM36/64 Dust Cover: Pump Rod
66 TM36/44 Pump Rod
67 TM36/60 Piston: Pump
68 VM14SC13/89 Spring: Pump Piston
69 VM38/148 Plunger: Cold Start
70 888-23026 Hose: Overflow
71 VM13/216 Screw: Retaining Float Vavle Seat
72 C2=0412-B Screw: Float Bowl
73 VM17/1002-size Starter Jet
74 VM28/174 Shim: Shaft
75 E204040 Washer: Pump Rocker
76 VM12/43 Dust Cover: Cold Start
81 N138198 O-ring: Cold Start Spring Retainer
82 VM16/42 Spring: Cold Start Plunger
83 640-12001 Retainer: Cold Start
84 TM40/26 Bracket: Fuel Feed Pipe
85 TM40/27 Fuel Feed Pipe
92 KV/10 O-ring: Float Valve Assy
94 990-662-001 Cold Start Cable & Knob Assy
95 TM40/07 Cold Start Assy (Knob Type)
MOUNT TYPE Spigot MAIN JET N100604-Size 165
TICKOVER POSITION Left PILOT JET VM28/486-Size 17.5
COLD START POSITION Left NEEDLE JET 784-13002-Size (568) Y-6
COLD START TYPE Cable JET NEEDLE 9DJY4-96 Clip groove #3
AIR SCREW POSITION STARTER JET VM17/1002-Size 45
FLANGE PITCH (MM) PILOT AIR JET BS30/97-Size 1.1
CLAMP DIA (MM) PILOT MIXTURE SCREW 604-26003 3 Turns out
FRONT SPIGOT DIAMETER (MM) 44 MAIN AIR JET BS30/97-Size 0
REAR SPIGOT DIAMETER (MM) 55 POWER JET
LENGTH (MM) 100 THROTTLE VALVE
HEIGHT OVER BORE CENTRELINE (MM) 83 FLOAT VALVE 786-36011-Size 3.8
HEIGHT UNDER BORE CENTRELINE (MM) 78 PUMP NOZZLE TM36/43-Size 0.70
FUEL INLET POSITION Left
FLOAT HEIGHT (MM) 19
FUEL SPIGOT (MM) 8
