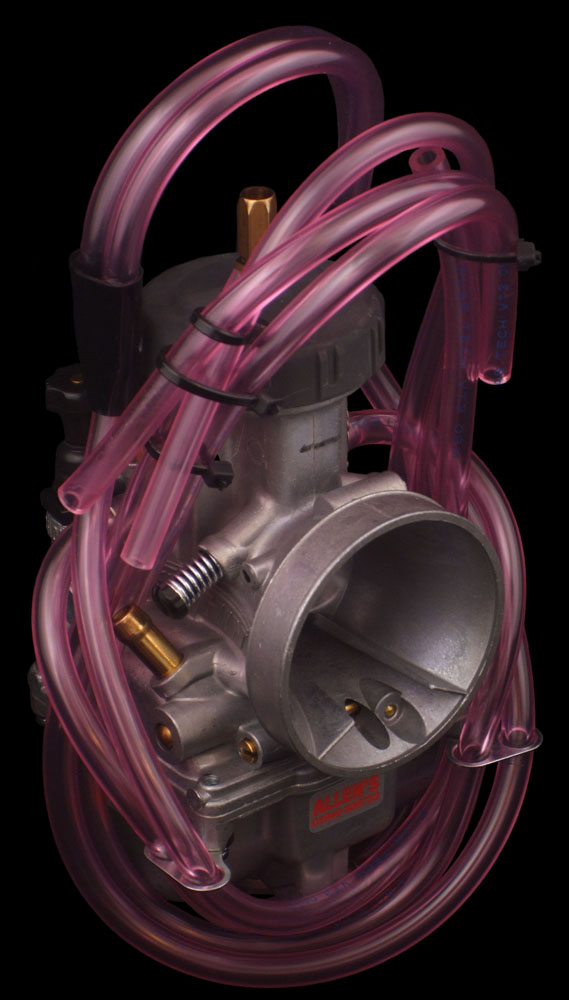

PWK35-S65 (AIR STRIKER) Data Set

Position Description PWK35 Quad Vent Air Strikers
2 Starter Valve Comp. 1166-818-2100
3 Float W1310-079-9921
4 Float Bowl Comp. W1350-311-9910
5 Gasket Float Bowl 16163-ND4-7510-M1
6 Plug Screw 16162-ND4-7511-M1
7 O-Ring Plug Screw 16173-001-0040
8 Float Valve Comp. 1062-814-2100
9 Anchor Plate 16179-KZ4-6900
10 Slow Jet N424-21-size
11 Jet Needle N427-48-size
12 Clip Jet Needle 16115-169-0040
13 Throttle Valve N502-15X00
14 Cable Holder 1101-804-2000
15 Top 1030-840-2001
16 Gasket 16110-ND5-7610-M1
17 Air Adjust Screw W1446-231-9900
18 Spring W1711-416-9900
19 Spring Throttle 1290-917-2001
20 Clip , Float Valve 0405-019-1000
21 Screw, Float Bowl N114-04163
Old No. (N114-04160)
22 Bowl Vent Pipe 95003-07048-31
22a Bowl Vent Pipe N/A
23 Overflow Pipe 95003-05033-31
24 Float Pin W9525-25250
25 Clip W9535-35000
26 Main Jet 99101-357-size
27 Cable Adjuster 1036-804-2000
27a Cable Adjuster W9581-59250 (25mm)
27b Cable Adjuster W9581-59200 (20mm)
28 Nut Cable Adjuster 0208-007-1100
28a Nut Cable Adjuster W1793-130-9900
29 Idle Adjuster (Plastic) 1034-853-2000
29a Idle Adjuster (Brass) N/A
30 Spring 1290-963-2000
30a Nut N/A
31 Collar 1118-A35-7000
32 Bowl Vent Pipe Comp. (For Quad Vent) 1699-KZ3-6900





MOUNT TYPE Spigot MAIN JET 99-101-357-Size 160
TICKOVER POSITION Left PILOT JET N424-21-Size 48
COLD START POSITION Left NEEDLE JET Fixed
COLD START TYPE Knob JET NEEDLE N427-48-DEK Clip groove #3
AIR SCREW POSITION Left STARTER JET Fixed
FLANGE PITCH (MM) PILOT AIR JET
CLAMP DIA (MM) PILOT AIR SCREW W1446-231-9900
FRONT SPIGOT DIAMETER (MM) 42 MAIN AIR JET
REAR SPIGOT DIAMETER (MM) 59 POWER JET
LENGTH (MM) 91 THROTTLE VALVE N502-15xxx 4.5
HEIGHT OVER BORE CENTRELINE (MM) FLOAT VALVE 1062-814-2100
HEIGHT UNDER BORE CENTRELINE (MM)
FUEL INLET POSITION Left
FLOAT HEIGHT (MM) 16
FUEL SPIGOT (MM) 7
