Allens Performance Ltd.

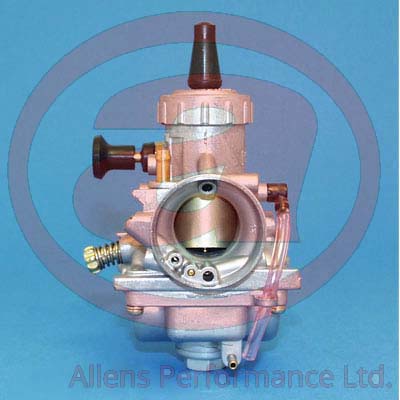

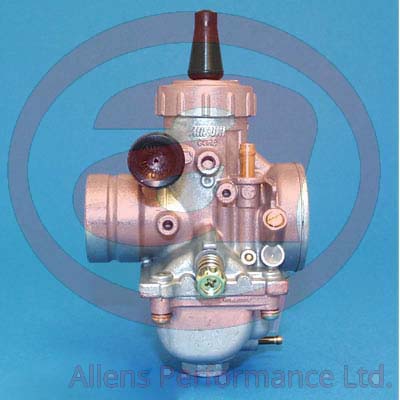

VM26-665 Carb Data Set

MOUNT TYPE Spigot MAIN JET 4/042-Size 170
TICKOVER POSITION Left PILOT JET M28/1001-Size 35
COLD START POSITION Left NEEDLE JET VM22/313 (249) O-0
COLD START TYPE Knob JET NEEDLE 4J13
AIR SCREW POSITION Left STARTER JET Fixed
FLANGE PITCH (MM) PILOT AIR JET
CLAMP DIA (MM) PILOT AIR SCREW VM14/73 1 Turns out
FRONT SPIGOT DIAMETER (MM) 35 MAIN AIR JET Fixed
REAR SPIGOT DIAMETER (MM) 43 POWER JET
LENGTH (MM) 84 THROTTLE VALVE VM24/361-Size 1.5
HEIGHT OVER BORE CENTRELINE (MM) 65 FLOAT VALVE VM26/26-Size 2.5
HEIGHT UNDER BORE CENTRELINE (MM) 62
FUEL INLET POSITION Left
FLOAT HEIGHT (MM) 21
FUEL SPIGOT (MM) 6
Exploded Diagram Mikuni VM26-606 VM26-665
1 Dust Cover: Cable Adjuster VM26/46
2 Cable Adjuster M21/14
3 Locknut: Cable Adjuster B30/247
4 Carburettor Top VM26/44
5 Seal: Carburettor Top VM26/57
6 Spring: Throttle Return VM24/195
7 Retaining Plate: Jet Needle VM26/55
8 E Clip: Jet Needle VM18/341
9 Jet Needle #
10 Throttle Valve VM24/361-size
11 Needle Jet VM22/313-size
12 Dust Cover: Cold Start Assy VM19/103
13 Retainer: Cold Start Assy VM20/300
19 Gasket: Float Bowl VM20/492
21 Pilot Jet M28/1001-size
22 Pivot: Float Arm BV26/22
24 Float VM24/365
25 Float Bowl VM22/314
26 Gasket: Float Bowl Drain Screw VM28/254
27 Float Bowl Drain Screw VM28/253
29 Pilot Air Screw VM14/73
30 Spring: Pilot Air Screw VM15/112
31 Spring: Tickover Screw VM26/197
32 Tickover Screw 603-16002
33 Gasket: Float Valve Assy VM26/25
34 Float Valve Assy VM26/26-size
36 Main Jet 4/042-size
37 Retainer: Vent Hose VM15/164
38 Screw: Float Bowl CW2=0416
39 Cold Start Assy: Knob Type VM16/210
