Allens Performance Ltd.

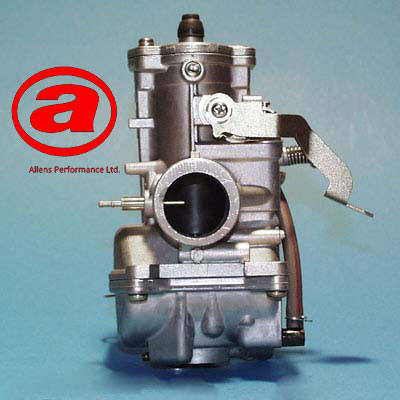

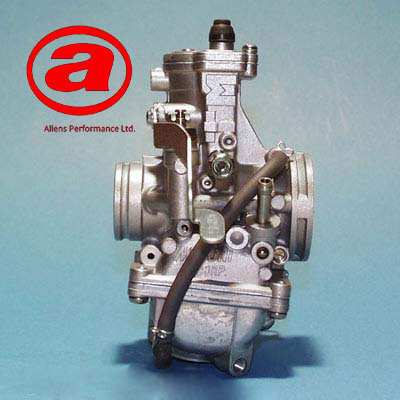

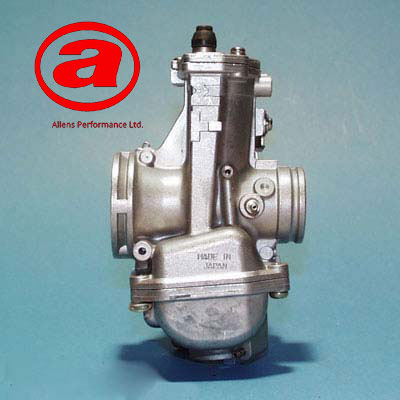

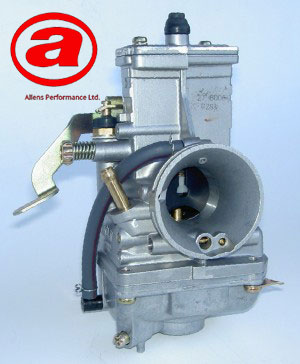

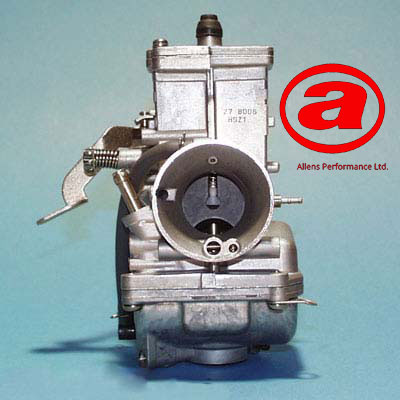

TM27-8006 Data Set

Position Description TM27-8006
1 Carburettor Body N/A
2 Jet Needle #
3 Carburettor Top 776-19020
4 Lock Nut N/A
5 Dust Cover: Cable Adjuster VM12/43
6 Cable Adjuster N/A
7 Seal: Carb Top 616-93009
8 E Clip: Jet Needle VM18/341
9 Retainer: Jet Needle TM30/08
10 Tickover Screw 603-25008
11 Spring: Tickover Screw 730-08029
12 Cold Start Assy See # 41-49
13 Air Screw VM28/889
14 Spring: Air Screw VM15/112
15 Float Bowl TM30/10
16 Float/Float Valve Assy See # 16a
16a Float Valve Assy 786-36008-size
16b Screw: Float Valve Seat N/A
16c Screw: Float Pivot Pin N/A
16d Baffle/Float Pivot Posts TM30/06
17 Pilot Jet VM22/210-size
18 Main Jet 4/042-size
19 O-ring: Float Valve 616-23003
20 Needle Jet 784-232401-size
21 Baffle: Main Jet TM30/06
22 Power Jet N100606-size
23 Stop: Float N/A
24 Screw: Carb Top CW2=0412
25 Throttle Valve 832-37005-size
26 Spring: Throttle Valve 730-11013
27 Vent Hose 888-24011
28 Screw: Float Bowl C2=0512
29 Overflow Hose 888-23022
30 Float (Left) 859-32015 (pair)
31 O-ring: Drain Screw N/A
32 Drain Screw N/A
33 Float (Right) See # 30
34 Seal: Float Bowl TM30/07
35 Pin: Float Arm VM20/315
36 Float Arm See # 30
37 Drain Screw N133363
38 Seal: Drain Screw N/A
39 O-ring: Air Screw N133037
40 Washer: Air Screw VM12/33
41 Hose: Power Jet TM32/19-1A
42 Plunger: Cold Start VM18/144
43 Spring: Cold Start VM32/69
44 Retaining Nut: Cold Start VM20/456
45 Dust Cover: Cold Start VM20/455
46 Cable Adjuster: Cold Start N/A
47 Lock Nut: Cold Start N/A
48 Lock Washer: Cold Start BV26/118
49 Lever: Cold Start TM27/10
50 Indexing Plate: Cold Start VM34/433
51 Power Jet Body N/A
52 Solenoid: Power Jet N/A
53 O-ring: Power Jet N/A
54 O-ring: Power Jet N/A
55 Screw: Power Jet N/A
56 Blanking Screw: Power Jet N/A
57 Seal: Power Jet N/A
58 O-ring: Power Jet N/A
59 N/A N/A



MOUNT TYPE Spigot MAIN JET 4/042-Size 150
TICKOVER POSITION Left PILOT JET VM22/210-Size 30
COLD START POSITION Left NEEDLE JET 784-232401-Size (622) N-9
COLD START TYPE Lever JET NEEDLE 6E20 Clip groove #3
AIR SCREW POSITION Left STARTER JET Fixed
FLANGE PITCH (MM) PILOT AIR JET
CLAMP DIA (MM) PILOT AIR SCREW VM28/889 2 Turns out
FRONT SPIGOT DIAMETER (MM) 36 MAIN AIR JET Fixed
REAR SPIGOT DIAMETER (MM) 50 POWER JET N100606-Size 85
LENGTH (MM) 88 THROTTLE VALVE 832-37005-Size 4.0
HEIGHT OVER BORE CENTRELINE (MM) 82 FLOAT VALVE 786-36008-Size 2.5
HEIGHT UNDER BORE CENTRELINE (MM) 77
FUEL INLET POSITION Left
FLOAT HEIGHT (MM) 13
OIL FEED Right
FUEL SPIGOT (MM) 6
