NEW PWK38-CY3 SHORT BODY AIR STRIKER

MOUNT TYPE Spigot MAIN JET 99-101-357-Size 168
TICKOVER POSITION Left PILOT JET N424-21-Size 42
COLD START POSITION NEEDLE JET Fixed
COLD START TYPE Knob JET NEEDLE N427-48-NVZA Clip groove #3
AIR SCREW POSITION Left STARTER JET Fixed
FLANGE PITCH (MM) PILOT AIR JET
CLAMP DIA (MM) PILOT AIR SCREW W1446-231-9900
FRONT SPIGOT DIAMETER (MM) 46 MAIN AIR JET
REAR SPIGOT DIAMETER (MM) 62 POWER JET
LENGTH (MM) 75 THROTTLE VALVE N502-27xxx 6.5
HEIGHT OVER BORE CENTRELINE (MM) FLOAT VALVE 1062-814-2100
HEIGHT UNDER BORE CENTRELINE (MM)
FUEL INLET POSITION Left
FLOAT HEIGHT (MM)
FUEL SPIGOT (MM)

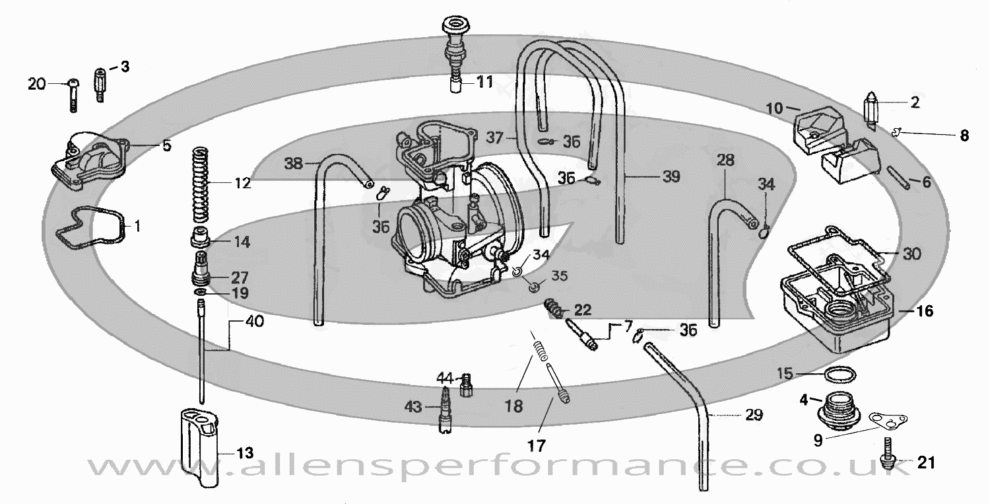

Exploded Parts Diagram Microfiche Keihin PWK38-CY3 Short Body Air Striker
Position Description PWK38 Short Body Air Strikers
1 Seal: Carb Top 1202-882-6000
2 Float Valve 1062-814-2100
3 Cable holde 1101-804-2000
4 Drain Screw 16162-ND4-7511-M1
5 Carb Top 1030-935-2000
6 Pivot pin W9525-25250
7 Pilot Air Screw W1446-231-9900
8 Clip: Float Valve 0405-019-1000
9 Hose Tidy 16179-KZ4-6900
10 Float Assy W1310-079-9921
11 Cold Start Assy 1166-818-2100
12 Spring: Throttle Valve
13 Throttle Valve #8

Throttle Valve #7

Throttle Valve #6

N502-27800

N502-27700

N502-27600

14 Cable Retainer 1118-A35-7000
15 O-ring: Float Bowl Drain Screw 16173-001-0040
16 Float Bowl 1050-898-2102
17 Tickover Screw (Original Plastic)

Tickover Screw (Metal Alternative)

1034-853-2000

1034-826-2002

18 Spring: Tickover Screw 1290-963-2000
19 Clip: Jet Needle 16115-169-0040
20 Screw: Carb Top N/A, use 0136-806-1001
21 Screw: Float Bowl N/A, use 93500-04014-1H
22 Spring: Pilot Air Screw W1711-416-9900
27 Needle Retainer 1101-804-2000
29 Breather Hose
30 Seal: Float Bowl 1051-KZ40-0001
34 O-ring: Pilot Screw W9351-11028
35 Washer: Pilot Screw 0301-803-2000
36 Hose Clip W9535-35000
38 Breather Hose
39 Breather Hose
40 Jet Needle
43 Pilot Jet N424-21-Size
44 Main Jet 99-101-357-Size
29a Idle Adjuster (Brass) N/A
30 Spring 1290-963-2000
30a Nut N/A
31 Collar 1118-A35-7000
32 Bowl Vent Pipe Comp. (For Quad Vent) 1699-KZ3-6900
