Mikuni Jet Identification Chart

PART NUMBER PICTURE DIMENSIONS AND FEATURES
SIZES

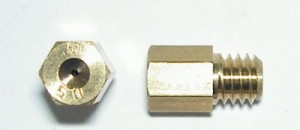

4/042-SIZE Shopping basket 4 042 6mm Hex
1BA Thread
11.5mm Length
5.0mm Thread length
50-200 (Δ 5)
210-500 (Δ 10)
520-720 (Δ 20)

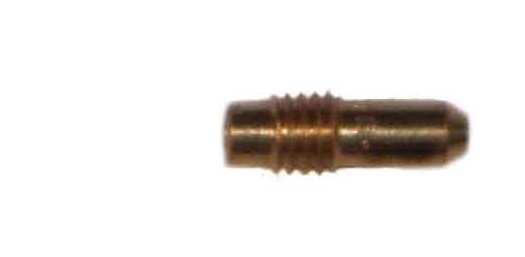

H5-N151067-A-SIZE Special Order A Mikuni H5-N151067-A-SIZE Jet M5x0.8 ThreadØ3.8mm Slot Head14mm Length
Plain, unbeaded nose Ø3.8mm
 30-65 (Δ 5)

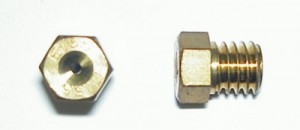

M10/14-SIZE Shopping basket m10 14 6mm Hex
1BA Thread
8.0mm Length
5.0mm Thread length
50-200 (Δ 5)

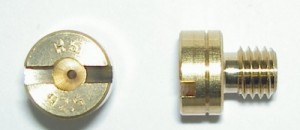

N100604-SIZE Shopping basket n100604 8.0mm Slot head
M5x0.75 Thread
9.0mm Length
5.0mm Thread Length
50-192.5 (Δ 2.5)
195-215 (Δ 5)
220-250 (Δ 10)

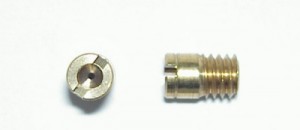

N100606-SIZE Shopping basket n100606 4.0mm Slot head
M4x0.70 Thread
6.5mm Length
3.00mm Thread length
30-150 (Δ 2.5)

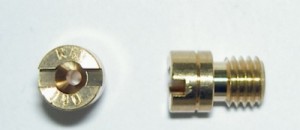

N102221-SIZE Shopping basket n102221 6.0mm Slot Head
M5x0.75 Thread
9.0mm Length
5.0mm Thread length
30-190 (Δ 2.5)
195-230 (Δ 5)

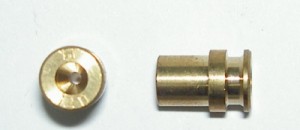

N208099-SIZE Shopping basket n208099 5.0mm smaller diameter
6.0mm Larger diameter
4.0mm major diameter length
Total length 9mm
110-160 (Δ 2.5)
165-230 (Δ 5)
N210620-SIZE  Special Order Ø5mm HeadM4x0.7 Thread6.5mm Length 100-150 (Δ 10)

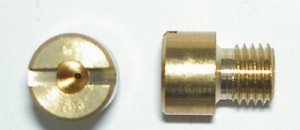

VM11/22-SIZE Shopping basket vm11 22 8.0mm Slot head
M6x0.75 Thread
10.5mm Length
5.5mm Thread length
50-150 (Δ 2.5) 150-180 (Δ 5)

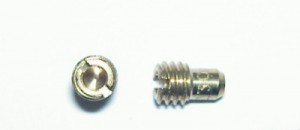

VM17/1002-SIZE Shopping basket vm17 1002 4.0mm Slot head
M4 Thread
6.0mm length
3.0mm Thread length
20-60 (Δ 5)
70-100 (Δ 10)
BS30/97-SIZE Shopping basket bs30-97 4.0mm Slot head
M4 Thread
7.5mm length
No Bleed holes
0.5-0.8 (Δ 0.1)
0.85-2.0 (Δ 0.05)
BS30/96-SIZE Shopping basket bs30-96 3.8mm Slot head
M5x0.8 Thread
14.0mm length
6 Bleed holes
30-60 (Δ 2.5)
M28/1001-SIZE Shopping basket m28-1001 4.0mm Slot head
M4 Thread
9.5mm length
5.5mm Thread length
No bleed holes
10-55 (Δ 2.5)
60-65 (Δ 5)
N151067-SIZE Shopping basket n151067 3.8mm Slot head
M5x0.8 Thread
14.0mm length
No bleed holes
30-60 (Δ 2.5)
N224103-SIZE Shopping basket n224103 5.0mm Slot head
M4 Thread
28.0mm length
2.5mm Diameter bleed tube
8 Bleed holes
10-40 (Δ 2.5)
45-70 (Δ 5)
VM13/352-SIZE Shopping basket vm22-210 4.0mm Slot head
M5x0.8 Thread
13.5mm length
1.3mm Mixing Chamber
8 Bleed holes
15-50 (Δ 2.5)
VM22/210-SIZE Shopping basket vm22-210 4.0mm Slot head
M5x0.8 Thread
13.5mm length
1.7mm Mixing Chamber
8 Bleed holes
10-60 (Δ 2.5)
65-100 (Δ 5)
100-120 (Δ 10)
VM28/486-SIZE Shopping basket vm28-486 5.0mm Slot head
M4 Thread
28.0mm length
2.0mm Diameter bleed tube
8 Bleed holes
10-60 (Δ 2.5)
65-70 (Δ 5)
VM28/213-SIZE Shopping basket vm28-213 5.0mm Slot head
M4 Thread
28.0mm length
?mm Diameter bleed tube
6 Bleed holes
15-22.5 (Δ 2.5)
25-40 (Δ 5)
B42/55-SIZE Shopping basket b42-55 6.5mm Slot head
? Thread
6.5mm length
M6x1.1
45-60 (Δ 5)
70-100 (Δ 5)
