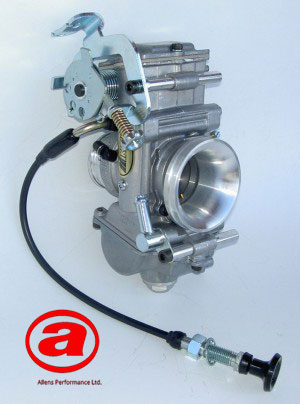

TMR36-19 Data Set

Position Part Number Description
1 TMR40/128 Float Bowl, #1
2 TMR40/150 Float Bowl, #2
3 TMR40/158 Float Bowl, #3
4 TMR40/160 Float Bowl, #4
5 776-37003 Carburettor Top Cover
6 Model Dependent Adaptor: Velocity Stack
7 Model Dependent Spacer: Carb Body Pitch
8 Model Dependent Spacer: Carb Body Pitch
9 Model Dependent Spacer: Carb Body Pitch
10 Model Dependent Spacer: Carb Body Pitch (Threaded)
11 Model Dependent Spacer: Carb Body Pitch (Threaded)
12 Model Dependent Screw: Carb Grouping
13 Model Dependent Screw: Carb Grouping
14 Model Dependent Screw: Carb Grouping
15 TMR40/63 Spacer (Spring Anchor)
16 TMR40/07 Gasket: Carb Top
17 TMR40/06 Retainer: Jet Needle
18 TM32/90 E-clip: Jet Needle
19 N105105 Washer: Jet Needle (Plastic)
20 J8-##### Jet Needle
21 TMR40/76 Lifting Arm: Throttle Valve (Fixed)
22 TMR40/62-1A Screw: Fixing Fixed Throttle Valve Lifting Arm
23 N167124 Spacer: Fixed Lifting Arm
24 N132043 Washer: Fixed Lifting Arm
25 832-57001-size Throttle Valve
26 VM28/323 Clip
27 VM44/15 Cap: Vacuum Fitting
28 TMR40/99 Screw: Throttle Stop
29 N3=04-B Lock Nut: Throttle Stop
30 N211100-size Air Jet: Pilot Circuit
31 N211100-0.0 Air Jet: Main Circuit
32 785-40004-size Needle Jet
33 N224103-size Pilot Jet
34 697-08022-1B Retainer: Needle Jet
35 N100604-size Main Jet
36 N138192 Pilot Mixture Screw
37 N138187 Spring: Pilot Mixture Screw
38 VM12/33 Washer: Pilot Mixture Screw
39 N133037 O-ring: Pilot Mixture Screw
40 786-35003-size Float Valve Assy
40a H2-786-36011-size Float Valve Assy (Single Carb)
41 KV/10 O-ring: Float Valve Assy
42 VM18/233 Filter: Float Valve Assy
43 N178058 Screw: Retaining: Float Valve Seat
44 859-32030 Float Assy
45 VM20/315 Pivot Pin: Floats
46 C2=0408 Screw: Retaining Float Pivot Pin
47 616-93032 Seal: Float Bowl
48 VM14/357 Cap: Pump Rod
49 TMR40/148 Rod: Pump
50 N193286 Dust Cover: Pump Rod
51 640-11007 Collar: Pump Rod
52 E100525 O-ring: Cold Start, Pump
53 VM24/560 Fork: Retaining Pump Collar
54 CW2=408 Screw: Pump Collar Retaining Fork
55 TM40/56 Piston: Pump
56 VM14SC13/89 Spring: Pump Piston
57 S3=0314-B Screw: Pump Adjuster
58 730-05005 Spring: Pump Adjusting Screw
59 TMR40/141 Rocker: Pump (Lower)
60 TMR40/151 Spring: Pump Crank
61 TMR40/139 Crank: Pump (Lower)
62 B40I/10 Washer: Pump Crank
63 BSW28/70 E-clip: Pump Crank
64 TMR40/14-size Pump Nozzle
65 N124063 Seal: Pump Nozzle
66 TMR40/134 Link Rod: Pump (Upper)
67 S3=0308-B Screw: Pump Adjuster
68 N2=03-B Lock Nut: Pump Adjuster
69 Model Dependent Bracket: Throttle Cables
70 B3=0510-B Screw: Throttle Cable Bracket
71 N133146 Tickover Screw
71a TMR41/11 Flexible adjuster used on huskies etc 8″ long
72 826-05003 Spring Seat: Tickover Screw
73 730-08012 Spring: Tickover Screw
74 N141217 Washer: Tickover Screw
75 VM28/254 O-ring: Drain Screw
76 TM32/41-B Screw: Drain
77 925-18003 Spacer
78 TMR40/61 Spring: Throttle Return
79 Model Dependent Throttle Shaft
80 Model Dependent Slider: Cold Start
81 N106211 Cap: Cold Start
82 640-11006 Retainer: Cold Start
83 VM16/42 Spring: Cold Start
84 N151038 Plunger: Cold Start
84a VM38/148 Plunger: Cold Start (Single Carb)
85 TMR40/147 Knob: Cold start
86 B40I/56 E-clip: Cold Start
87 N198065 Spring Plate: Cold Start Slider
88 TMR40/143 Fork: Cold Start Plunger
89 N178023 Spacer: Cold Start Clip
90 TMR40/04 Screw: Cold Start Fork, Stack Adaptor
91 Model Dependent Spigot: Front of Carb
92 Model Dependent O-Ring: Front Spigot
93 Model Dependent Hose: Pump Transfer
94 Model Dependent Hose: Pump Transfer
95 Model Dependent T-piece: Breather
96 TMR40/04-1A Screw: Carb Top, Float Bowl
97 W4-04-B Spring Washer: Carb Top
98 Model Dependent T-piece: Fuel Inlet
99 N198006 Seal: Fuel T-piece
100 Model Dependent Velocity Stack
101 730-09044 Spring: Cold Start Slider
102 TMR40/73 Lifting Arm: Throttle Valve (Adjustable)
103 TMR40/62-1B Screw: Throttle Valve Lifting Arm Synchronisation
104 TMR40/05 Lock Nut: Throttle Valve Lifting Arm Synchronisation
105 TMR41/01-1C Throttle Postition Sensor (TPS) (TMR41-23)



FUEL SPIGOT 8MM
