TM24-9 Data Set

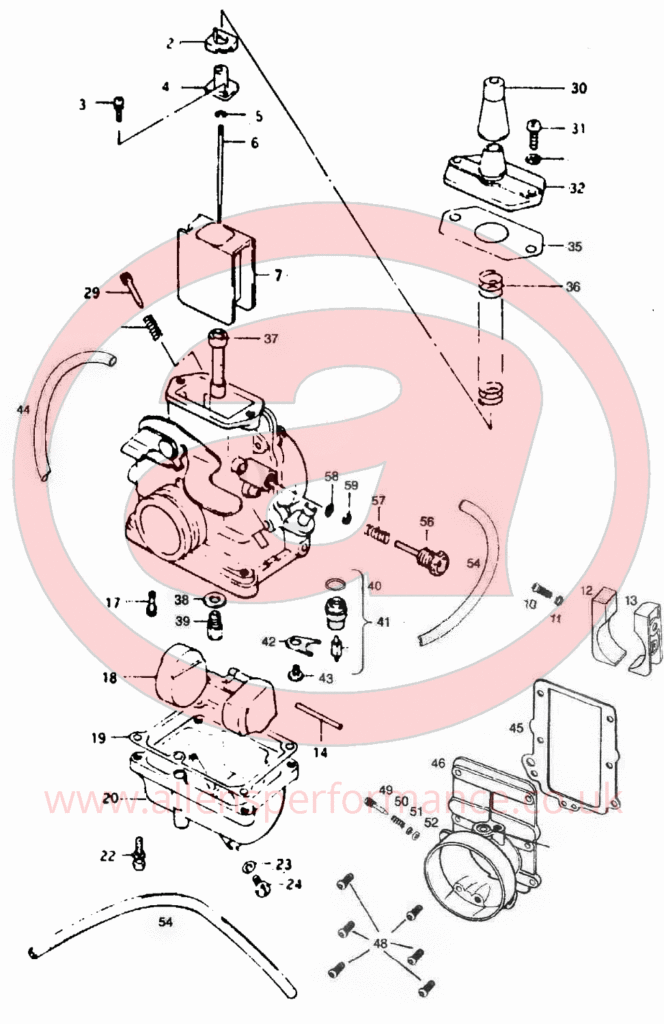

| # | Description | TM24-9 |
| 1 | Cold Start Assy | TM24/01 |
| 2 | Thrust pad: Throttle Spring | VM24/791a |
| 3 | Screw: Needle Retainer | CW2=2608 |
| 4 | Retainer: Jet Needle | VM24/790 |
| 5 | E-Clip: Jet Needle | VM18/341 |
| 6 | Jet Needle | #Variable |
| 7 | Throttle Valve | 832-30005-size |
| 10 | Screw: Throttle Valve Guide | VM38/132 |
| 11 | Washer: Throttle Valve Guide | VM34/274 |
| 14 | Pivot: Float Arm | BV26/22 |
| 17 | Pilot Jet | VM22/210-size |
| 18 | Float | VM24/365 |
| 19 | Gasket: Float Bowl | VM20/492 |
| 20 | Float Bowl | VM24/793c-40 |
| 22 | Screw: Float Bowl | CW2=0416 |
| 23 | Gasket: Drain Screw | VM22/184 |
| 24 | Drain Screw | VM22/185 |
| 30 | Dust Cover: Cable Adjuster | VM26/46 |
| 31 | Screw: Carburettor Top | CW2=0412 |
| 34 | Carburettor Top | 776-14001 |
| 35 | Gasket: Carburettor Top | VM24/785 |
| 36 | Spring: Throttle Valve Return | 730-11003 |
| 37 | Needle Jet | 784-21005-size |
| 38 | Baffle: Main Jet | VM20/169 |
| 39 | Main Jet | 4/042-size |
| 40 | O-ring: Float Valve Assy | VM24/559 |
| 41 | Float Valve Assy | VM24/557-size |
| 42 | Retaining Plate: Float Valve Assy | VM24/560 |
| 43 | Screw: Retaining Plate | C2=0408 |
| 44 | Vent Hose | VM20/242 |
| 45 | Gasket: Carb Body | VM24/87c |
| 48 | ScrewL Carburettor Body | CW2=0412 |
| 49 | Pilot Air Screw | VM20/584 |
| 50 | Spring: Pilot Air Screw | M12F/46a |
| 53 | Main Air Jet | Fixed |
| 54 | Vent Hose | VM20/242 |
| 55 | Starter Jet | Fixed |
| 56 | Tickover Screw | 603-27002 |
| 57 | Spring: Tickover Screw | VM15/112 |
| 58 | O-Ring: Tickover screw???? | VM14/75 |
| 59 | Washer: Tickover Screw??? | VM14/87 |
| MOUNT TYPE | Spigot | MAIN JET | 4/042-Size | 130 |
| TICKOVER POSITION | Left | PILOT JET | VM22/210-Size | 15 |
| COLD START POSITION | Right | NEEDLE JET | 784-21005-Size (454) | Q-0 |
| COLD START TYPE | Knob | JET NEEDLE | 5N14 | Clip groove #3 |
| AIR SCREW POSITION | Right | STARTER JET | Fixed | — |
| FLANGE PITCH (MM) | — | PILOT AIR JET | — | — |
| CLAMP DIA (MM) | — | PILOT AIR SCREW | VM20/584 | 1.25 Turns out |
| FRONT SPIGOT DIAMETER (MM) | 31 | MAIN AIR JET | Fixed | — |
| REAR SPIGOT DIAMETER (MM) | 44 | POWER JET | — | — |
| LENGTH (MM) | 75 | THROTTLE VALVE | 832-30005-Size | 3.0 |
| HEIGHT OVER BORE CENTRELINE (MM) | 60 | FLOAT VALVE | VM24/557-Size | 2.5 |
| HEIGHT UNDER BORE CENTRELINE (MM) | 58 | — | — | — |
| FUEL INLET POSITION | Left | — | — | — |
| FLOAT HEIGHT (MM) | 21 | — | — | — |
| FUEL SPIGOT (MM) | 6 |
