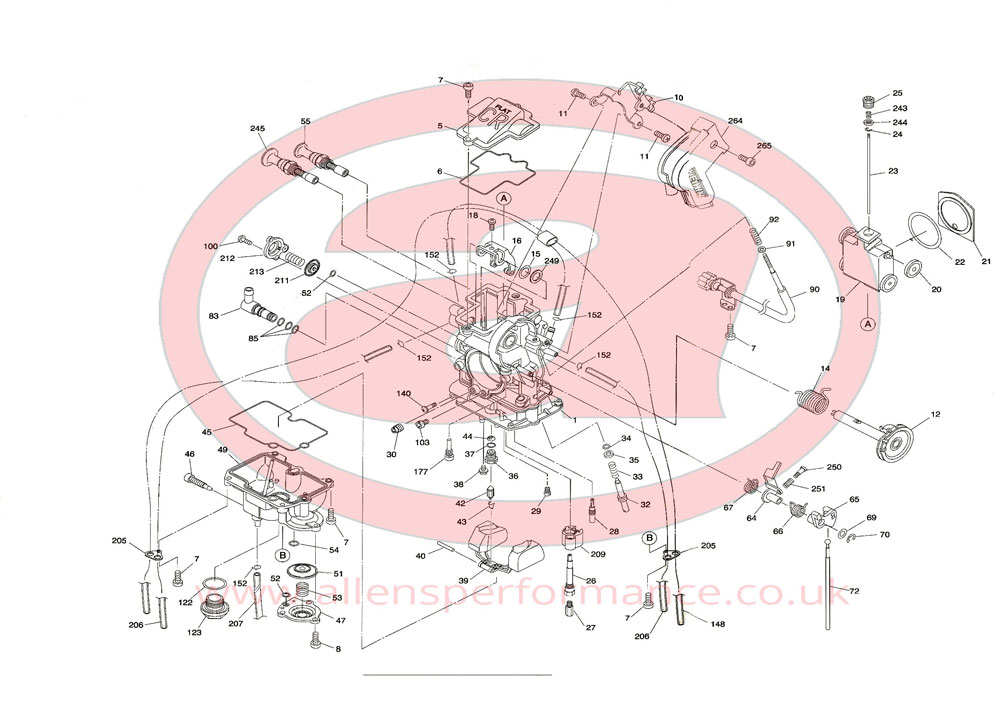

FCRMX37B – Includes Air Cut Off Valve and Hot Start Data Set

5 Top 1030-897-2000
6 Gasket 1202-895-6000
7 Screw (M4 x12) 0136-806-1100
8 Screw (M4 x 8) 0136-808-1100
10 Bracket 1190-840-2101
11 Screw 93500-05008-1H
12 Throttle Shaft Comp. 5025-B35-2201
14 Coil Spring 1305-A83-2000
15 Washer 0301-092-7000
16 Link Arm Comp. 1061-831-2101
18 Stop Screw 4110-825-1100
19 Throttle Valve N501-49C01
20 Roller 1119-803-7002
21 Plate 1609-809-2100
22 Seal 1099-817-6000
23 Jet Needle N427-0C-size
24 Clip 0403-802-1000
25 Set Screw 1421-802-2000
26 Main Nozzle 1154-842-2000
27 Main Jet 99101-357-size
28 Slow Jet N424-21-size
29 Starter Jet 99101-393-size
30 Slow Air Jet 99101-124-size
32 Pilot Screw N446-07A00
33 Coil Spring 1290-812-2000
34 O-Ring 16075-KG8-9010-M1
35 Washer 0301-803-2000
36 Valve Seat 3.2-4mm N361-04-size
37 O-Ring 16958-397-7710-M1
38 Screw 0118-806-1100
39 Float Comp. 1052-856-2100
40 Arm Pin W9525-25250
42 Float Value 3.2-4mm 1062-814-2101
43 Clip 0405-019-1000
44 Fuel Screen 2009-811-2100
45 O-Ring 1202-896-6000
46 Drain Screw 1198-810-2002
47 Cover 1230-826-2002
49 Float Bowl Comp. 1050-948-2101
51 Diaphragm Comp. 1201-858-2700
52 U-Ring W9353-36000
53 Coil Spring 1300-142-2000
54 O-Ring 16178-548-0040
55 Starter Valve Comp. 1166-844-2100
64 Link Lever 1100-914-2100
65 Link Lever # 2 1100-915-7000
66 Coil Spring # 1 1305-B01-2001
67 Coil Spring # 2 1305-A82-2000
69 Washer W1795-223-9900
70 E-Clip 16179-676-3000
72 Rod 1458-858-2001
83 Fuel Joint 1074-895-2100
85 O-Ring W9351-13057
90 Idle Speed Screw 1034-815-4500
91 Washer 0301-078-1200
92 Coil Spring 1300-112-2000
100 Screw (M4 x 8) 0136-804-1100
103 Main Air Jet 99101-393-size
122 O-Ring 16173-001-0040
123 Drain Bolt 16162-ND4-7511-M1
140 Screw 0110-804-1200
148 Vent Hose 0803-884-0100
152 Hose Clip W9535-35000
177 Stop Screw 1034-905-2000
205 Hose Retainer 16179-KZ4-6900
206 Vent Hose 0803-878-0000
207 Vent Hose 95003-07033-31
209 Buffer Plate 1157-812-7000
211 Diaphragm Comp. W1470-MW0-7500
212 Cover 1230-850-2000
213 Coil Spring 1290-A19-2000
243 Coil Spring 1290-A65-2000
244 Collar 1118-B36-2000
245 Hot Start Valve 1166-845-2100
249 Washer W1795-164-9900
250 Stop Screw 16124-KR3-6010-M1
251 Coil Spring 16053-KT7-0030
264 Cover 1230-869-7001
265 Cover Screw 0136-839-1100





MOUNT TYPE Spigot MAIN JET 99-101-357-Size 160
TICKOVER POSITION Left PILOT JET N424-21-Size 45
COLD START POSITION Left NEEDLE JET Fixed
COLD START TYPE Knob JET NEEDLE N427-OC-EMR Clip groove #4
AIR SCREW POSITION STARTER JET
FLANGE PITCH (MM) PILOT AIR JET 99-101-124-Size 100
FRONT SPIGOT DIAMETER (MM) 48 MAIN AIR JET 99-101-393-Size 200
REAR SPIGOT DIAMETER (MM)
LENGTH (MM) 63.5 THROTTLE VALVE N501-49C01 1.5
HEIGHT OVER BORE CENTRELINE (MM) FLOAT VALVE 1062-814-2100
HEIGHT UNDER BORE CENTRELINE (MM)
FUEL INLET POSITION Left
FLOAT HEIGHT (MM) 9
FUEL SPIGOT (MM) 8
