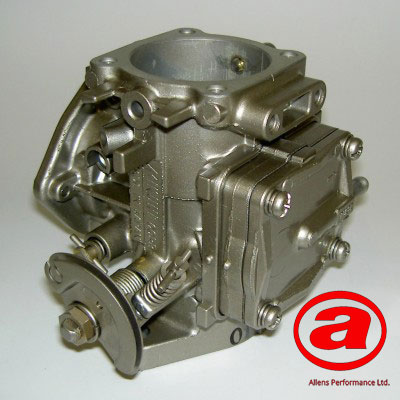

BN46-42-8002 Data Set

1 B30/305 O-ring: High Speed Screw
2 BZ25/26 O-ring: Low Speed Screw
3 VM26/25 Gasket: Valve
4 BN/527 Gasket: Valve
5 BN38/314 Valve plate
6 BN38/02 Diaphragm: Pump
7 BN38/02 Diaphragm: Damper (Clear Plastic)
8 BN38/469 Seal: Damper
9 BN38/467 Diaphram: Damper
10 BN38/150 Gasket: Damper
11 BN38/468 Valve plate
12 BN38/12 Seal: Cover
13 BN38/86 Spring: Pop Off Valve Pressure
14 VM30/97 Pivot Pin: Pop off Valve
15 BN38/534 Rocker Arm
16 VM26/26-size Valve: Pop Off
17 BN38/320 Screw: Cover
18 C6=0307 Screw: Retains Pivot Pin
19 BN38/320 Screw: Drain



HIGH SPEED JET N102221-Size 150
LOW SPEED JET N100606-Size 120
POP OFF PRESSURE SPRING (grammes) See chart 80
FUEL SHUT OFF VALVE 786-35015-Size 2.5
Length
Flange (Engine) Mounting Pitch
Flange (Airbox) Mounting Pitch
